Capacity
3840Wh
Wholesale Product Summary
3600W 3840Wh Portable Power Station
3600W Portable Power Station delivers 3600W output and 3840Wh capacity for outdoor power, emergency backup, and off-grid energy storage applications. Tuomo Tech provides OEM configuration, private label support, and export-ready bulk supply.
Model 3600W
Capacity 3840Wh
Warranty 1 Year
OEM / ODM Available
OEM/ODM Available Bulk Wholesale Export Ready
B2B Sourcing Summary
Output / capacity
3600W / 3840Wh
Solar input
Up to 2000W; listed 11.5-90V range
System features
10ms UPS, app support, and parallel expansion listed
Buyer fit
High-output backup and expandable energy-system programs
Overview
Product Overview

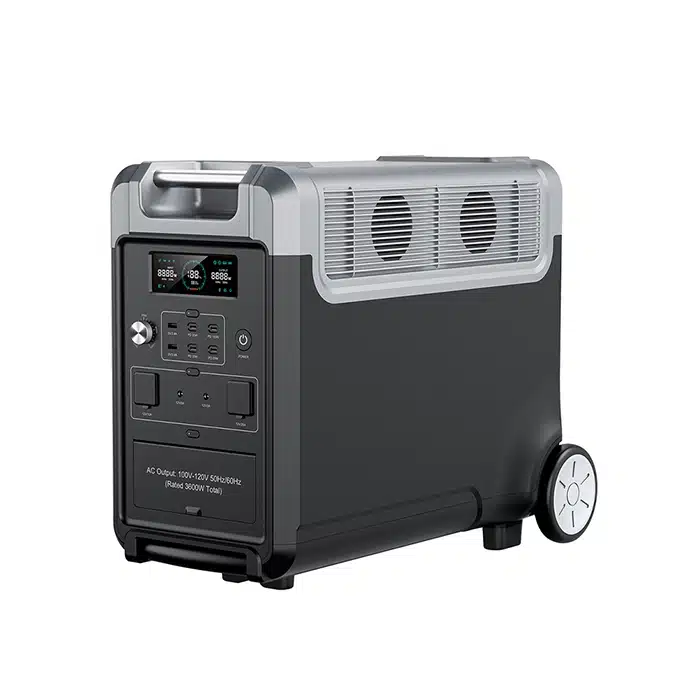

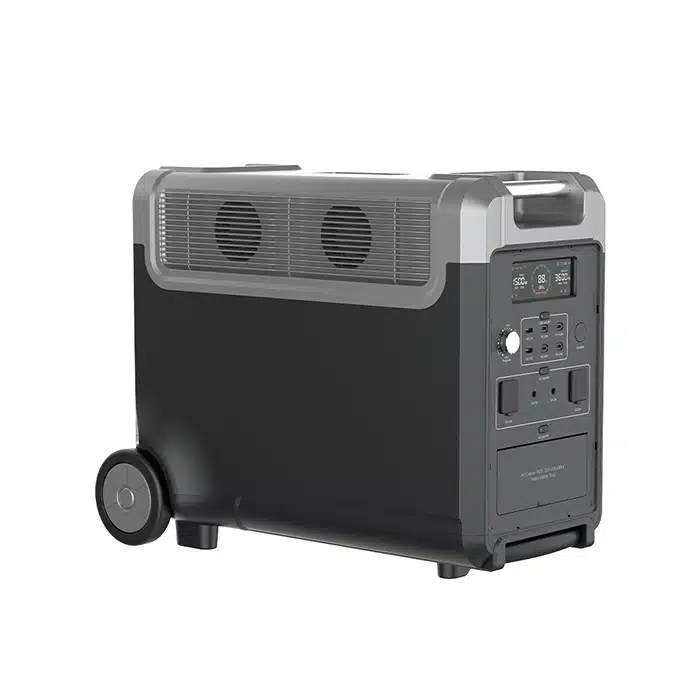

The 3600W portable power station is a high-output 3840Wh LiFePO4 platform for backup-power, professional, and expandable portable-energy programs.

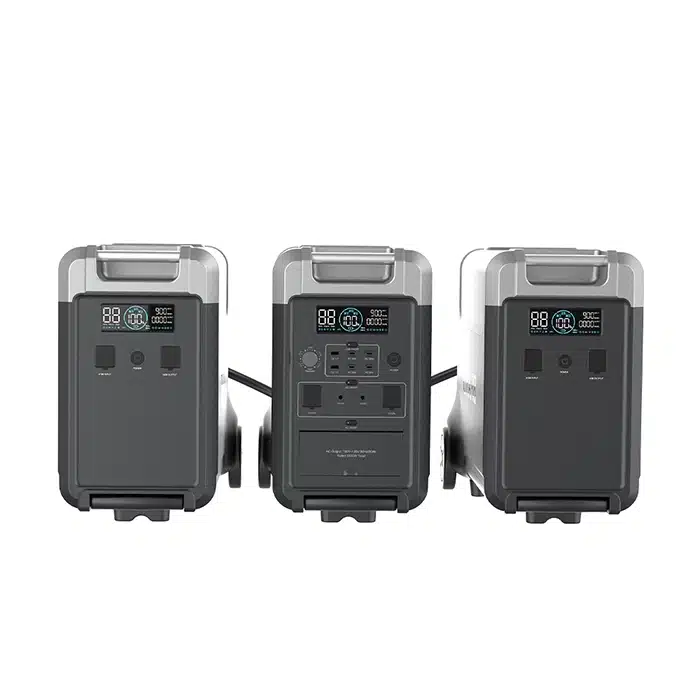

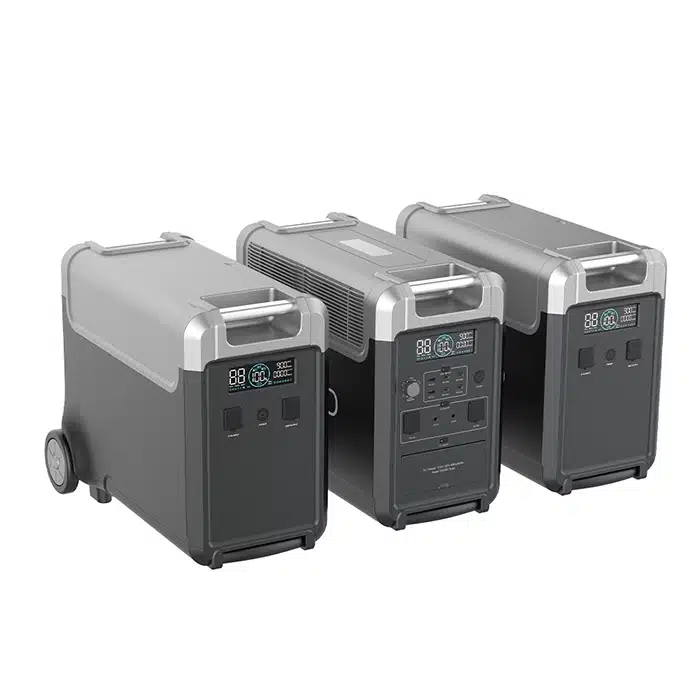

It combines 3600W pure sine wave AC output, 1500-2200W listed AC input, up to 2000W solar input within a listed 11.5-90V range, 10ms UPS functionality, app support, and parallel expansion support.

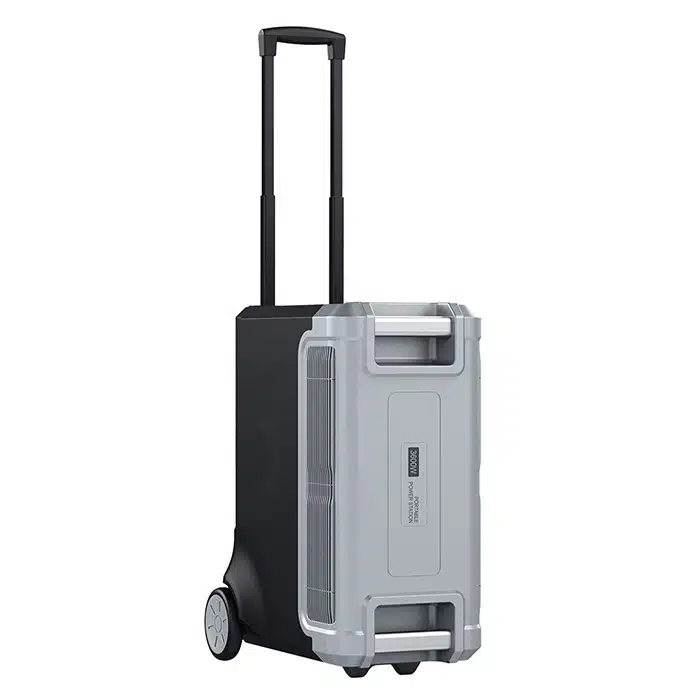

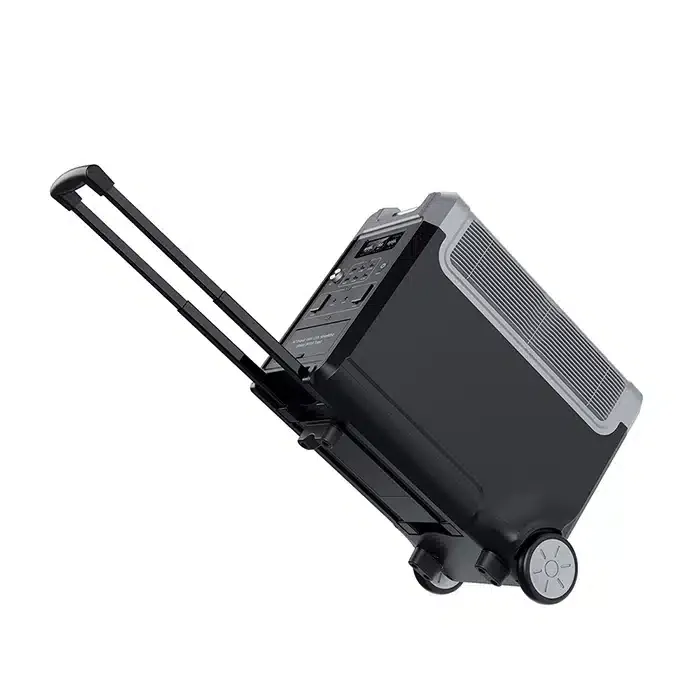

At approximately 42kg, it is positioned as a transportable energy system rather than a compact recreational unit. Buyers should validate expansion architecture, solar array electrical values, representative loads, regional AC requirements, and compliance documentation.
Specs
Key Specifications
Core parameters for quick sourcing review. Contact us for the complete datasheet, certification files, and OEM quotation.
Size
550 x 321 x 464mm
Weight
≈ 42kg
Battery cell
LiFePO4
AC output power
3600W
AC output voltage
110-220V 50/60Hz Pure Sine Wave
AC Input
1500~2200W
Solar input
2000W (11.5~90V)
AC charge time
3Hrs
Type-C Output
PD100W/20W
USB output
18W
DC Output
12V/10A; 12V/25A; 12V/3A
UPS
10ms
Why Choose This Model
Higher 3600W output tier
The 3600W platform targets buyers needing greater load capability than the standard and large-capacity 3000W models.
High solar input capability
The listed 2000W solar input supports larger compatible arrays after voltage, current, connector, and cable configuration are confirmed.
Expandable system positioning

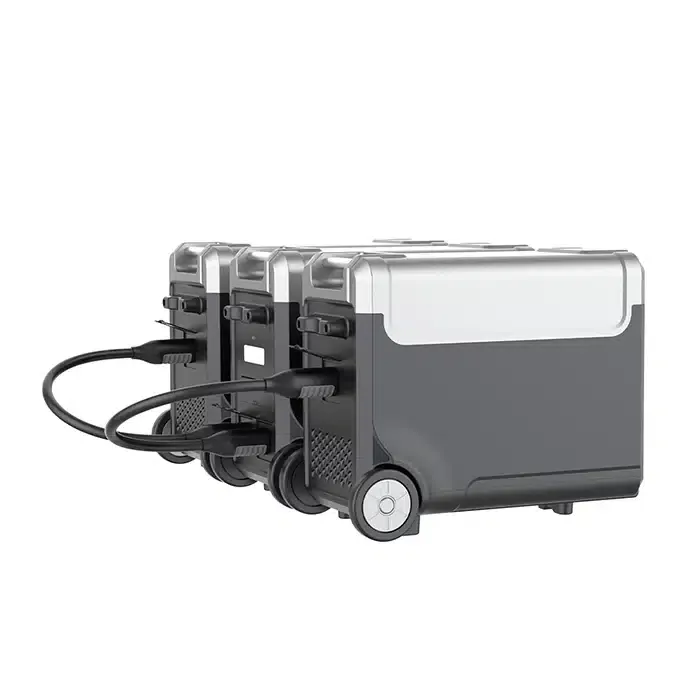

Listed app support, parallel expansion, and 10ms UPS functionality distinguish this model for more advanced energy-system programs.
B2B
Why Source From Tuomo Tech
Factory Direct Pricing
Competitive pricing by eliminating middlemen. Bulk orders unlock additional discounts.
OEM/ODM Customization
Logo, color, packaging, and specifications tailored to your brand and market needs.
Certified Quality
CE, FCC, RoHS, UL certified. UN38.3 for safe shipping. Documentation provided.
Fast Response
Quote within 24 hours. Sample evaluation available. Dedicated sales support.
Ready to Start Your Sourcing?
Contact us now for product samples, bulk pricing, and customization details.
Safety
Certifications & Compliance
All certificates are issued by accredited third-party testing labs. Click any certificate to view full details.
Global Market Ready
This product can be supported with export-ready certification documents for international B2B orders.
Safety
CE, FCC, and RoHS documentation can be provided according to product model and destination market requirements.
Transport
UN38.3, MSDS, and safe shipping documents are available for lithium battery air and sea transport review.
Reports
Identification and classification reports for transport of goods can be prepared for qualified bulk orders.
Official Certificates
OEM/ODM
Customization Options
Color Options
Match product casing colors to your market, brand palette, or retail channel requirements.
Production
Inside & Factory
Quality Assurance: Every unit undergoes rigorous testing in our Shenzhen facility before shipment.
Production ✓
Assembly Line
Skilled workers assemble every unit on our dedicated production line with strict process controls.
Aging Test ✓
100% Aging Test
Every unit is placed into our automated aging cabinet for full charge-discharge cycle verification.
QC ✓
Output & Charging Tests
AC output, charging input, DC ports, protection functions, and battery performance are inspected before packing.
Validation ✓
Load Validation
Representative loads are used to verify output stability, operating controls, and protection behavior.
Temp Test ✓
High & Low Temp Test
Units are tested in our TEMPSNUMI climate chamber across extreme temperature ranges to ensure reliability.
Drop Test ✓
1.2m Drop Test
Third-party certified 1.2m drop test (CCJC / CNAS) confirms structural durability for transport and daily use.
Factory pricing in 24h Ready to source? Get factory direct pricing in 24 hours.
FAQ'S AND SUPPORT
We are here to help you.
Responses may take up to 48 hours as we are experiencing an increase in customer support volume.
How does the 3600W model compare with the 3000W models?
It increases listed output to 3600W and adds listed 2000W solar input, app support, parallel expansion, and 10ms UPS functionality. Capacity and weight should also be compared against the specific 3000W version.
What must be checked before connecting a solar array?
Confirm the array's total wattage, open-circuit voltage, operating voltage, current, connector type, cable configuration, and compatibility with the listed 11.5-90V input range.
Does 10ms UPS operation suit every sensitive device?
No universal compatibility should be assumed. Critical or sensitive equipment must be tested with the configured unit and the intended operating setup.

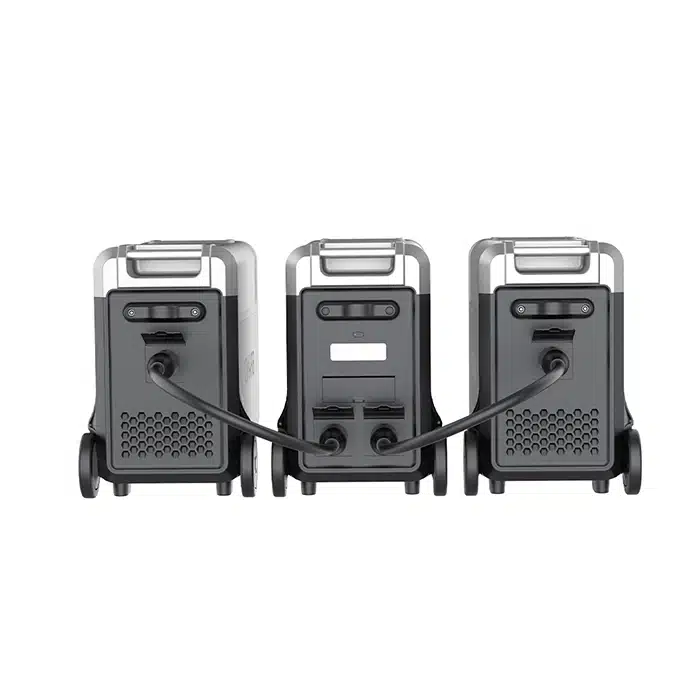

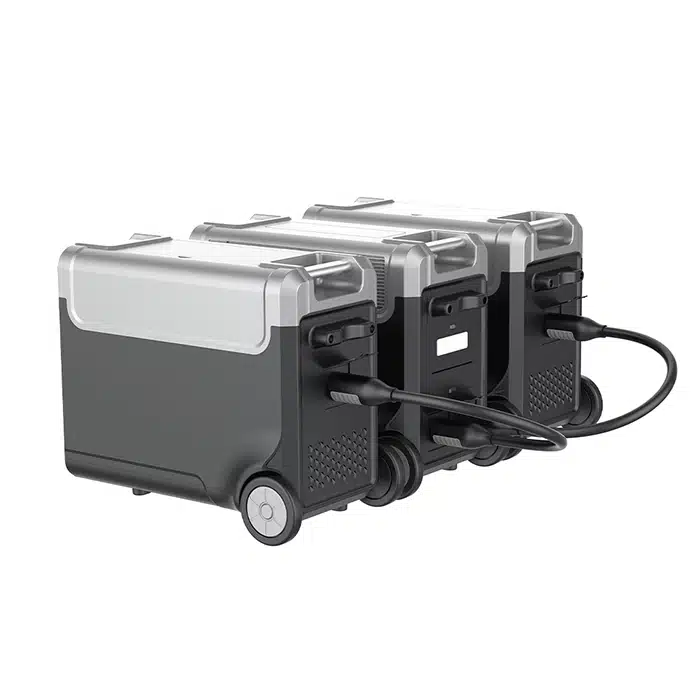

What should buyers confirm about parallel expansion?
Confirm compatible expansion products, connection method, supported operating modes, combined limits, accessories, software behavior, and warranty requirements before planning a system.
